Tilt & Turn Windows

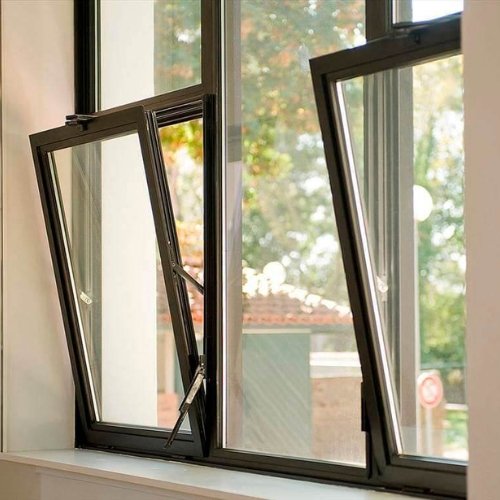

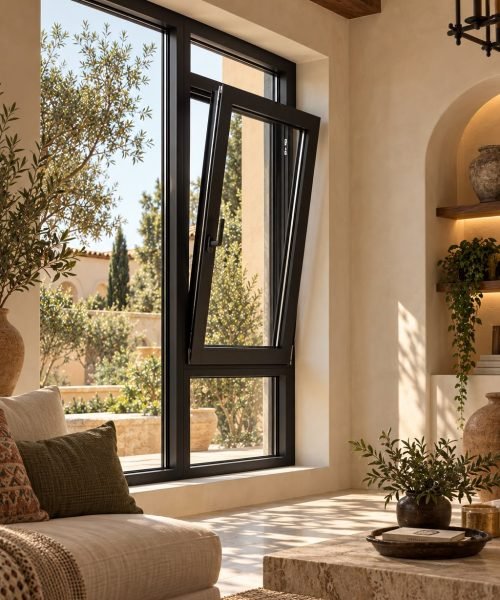

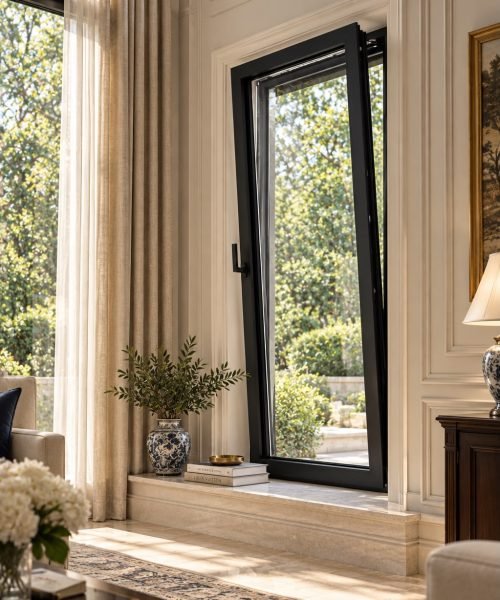

FAM Aluminum Tilt & turn windows square measure a well-liked selection for householders because of the sensible and versatile options. A tilt & turn window will be opened in 2 ways that, either opened absolutely like that of a casement window or can be tilted from the bottom while the top of the window will be angled into the room. This permits a gap for ventilation with the advantage of hyperbolic security and safety.

We use solely the best multi-point hardware sets in tilt & turn windows to confirm a swish and easy operation, security, and very good air protection.

FAM Aluminium Tilt & turn windows square measure extremely secure as a tilt & turn window needs additional sturdy internal hardware to control than an everyday window and offers multiple varieties of protection points. The in-swing hinges more secure the window from being forced open from the surface.

Advantages:

The most obvious advantage of a tilt & turn window is the varied ventilation. The lean operation permits for high ventilation, restraining robust breezes and makes a superb night gap whereas the turn operation permits for a large gap and most air circulation. Tilt & turn windows additionally supply the advantage, of being straightforward to wash – nice if your window isn’t accessible by a ladder.

Specifications of Tilt & Turn Windows:

  1. Frame width 45 mm to 105 mm & thickness is 1.4 mm to 1.8 mm. Could be altered as per project dimensions.
  2. Tubular straight, elegant and stylish of 52 mm width. A wide range is available to cover all the needed applications and glass thickness.
  3. Window frames are built to +/- 10% tolerance.

Aluminium Profile Options:

45-100 Turn & Tilt Series

45 Turn & Tilt Series

45 Turn & Tilt Series Inside

Multiple Glazing Options

  1. Float Glass: Available thickness 4mm, 6mm, 8mm, 10mm, 12mm.
  2. Reflective Glass: Available thickness 5mm & 6mm, etc.
  3. Tinted Glass: Available thickness 5mm & 6mm, etc.
  4. Obscured Glass: Available thickness 4mm, 5mm & 6mm, etc.
  5. Laminated Safety Glass: Available thickness 4mm+0.38 PVB+4mm, 5mm+0.38 PVB+5mm, 6mm+0.38 PVB+6mm, 6mm+0.76 PVB+6mm, etc.
  6. Tempered Glass: 4mm, 6mm, 8mm, 10mm, 12mm, etc.
  7. Insulated Glass: Available air spacer thickness 4mm, 6mm, 8mm, 10mm & 12mm, etc.
